GXV3611IR_HD

Our Price $90.00
MSRP $139.00

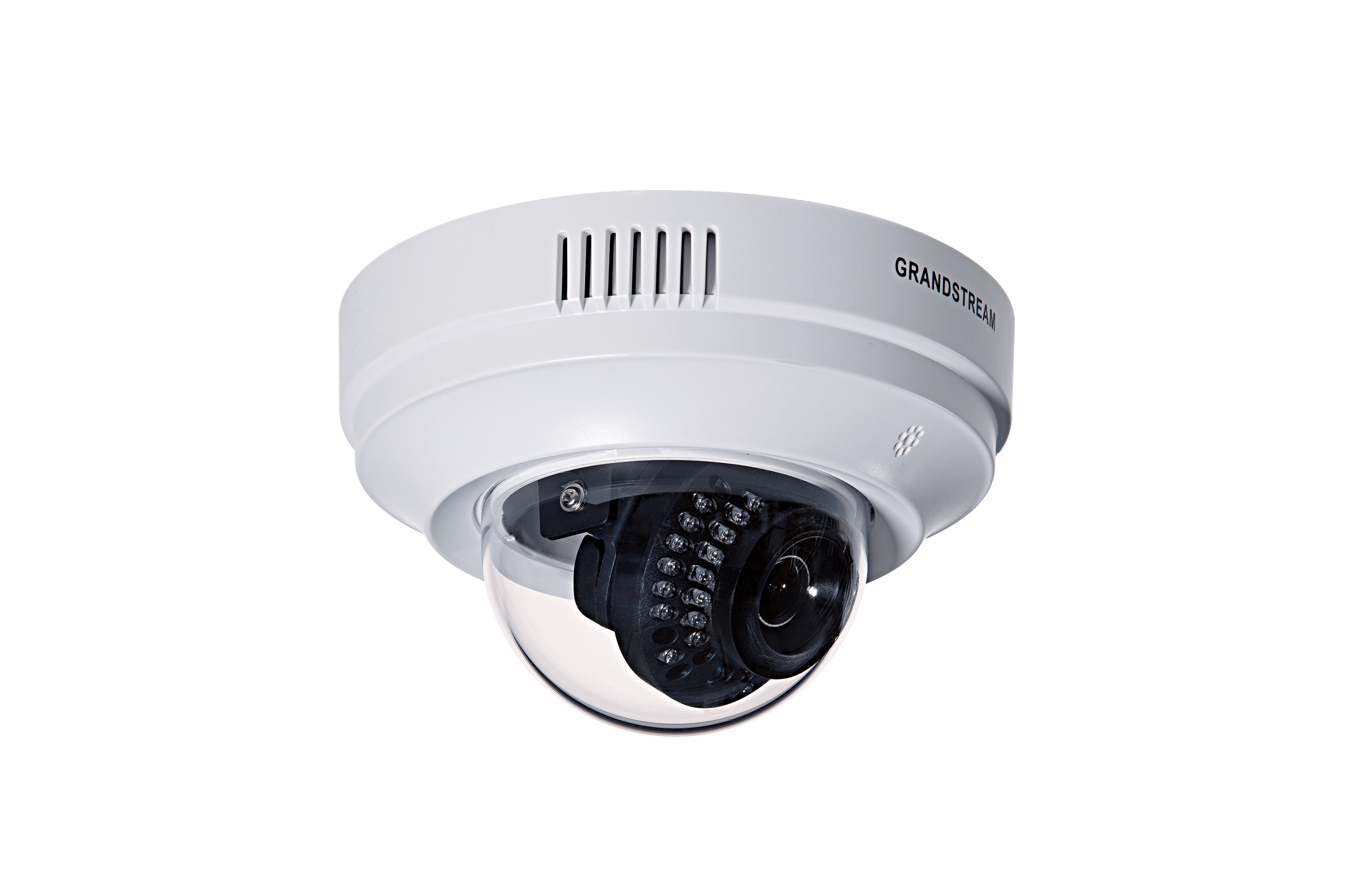

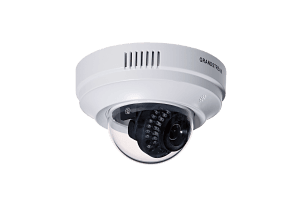

GXV3611_leftThe GXV3611IR_HD is an indoor Infrared (IR) fixed dome IP camera with a high-definition 2.8mm lens – making it ideal for wide angle monitoring of nearby subjects in environments such as banks, hotels, retail, offices or building entrances. The camera’s advanced Image Sensor Processor (ISP) is powered by a state of the art auto-exposure/auto-white-balance algorithm which allows for exceptional performance in all lighting conditions. Pair the GXV3611IR_HD with Grandstream’s GVR3550 Network Video Recorder (NVR), which supports plug-n-play with all Grandstream IP cameras, to create a powerful recording and monitoring solution. The GXV3611IR_HD can also be managed by GSURF Pro (Grandstream’s FREE Video Management Software that allows simultaneous control of up to 72 cameras) along with other ONVIF-compliant video management systems. The GXV3611IR_HD IP camera features industry-leading SIP/VoIP for 2-way audio and video streaming to both video and smart phones. It contains integrated PoE, IR-CUT for day and night mode, microphone, speaker, and a flexible HTTP API for easy integration with other surveillance systems.

Feature Highlights

  • High quality Megapixel CMOS sensor and 2.8mm HD lens
  • Advanced multi-streaming real-time H.264, Motion JPEG at full frame rate
  • Firmware Update and Factory Reset performed using the GS_Search utility tool
  • Supports Time-lapse photography
  • Embedded Video Analytics and SIP/VoIP/IMS support
  • Integrated micro SDHC interface for local embedded storage
  • Full ONVIF conformance with extensions
  • Smart IR for optimal White Balance and Exposure
  • High-performance streaming server allowing multiple simultaneous viewers
  • Automatic discovery by Windows “Network” (UPnP) or Apple Mac (Bonjour) with Safari native support if MJPEG is selected
  • Supports both variable bit rate and variable frame rate
  • Enhanced H.264 encoder for lower bit rate
  • Automatic Provisioning via DHCP Option 66
  • Supports Privacy Masks, Disable Telnet to enhance security

Technical Specifications

Video Compression H.264, MJPEG
Image Sensor Resolution Megapixel Progressive Scan CMOS, 1280H x 720V
Image Sensor Sensitivity Day & Night mode, exceptionally low noise levels and low-light sensitivity
Shutter: 1/10000 – 1/30 second
Focal length 2.8mm
Aperture F1.8
IR Cut Filter Yes, Mechanical
Day & Night Mode IR LED with Smart IR software control
Minimum Illumination 0 lux
Pan 176°
Tilt 60°
Sensitivity 3300mV / (lux-sec)
Supported Maximum Video Resolution and Frame Rate 1280×720 (30fps)
Video Bit Rate 32 Kbps ~ 8Mbps, Multi-rate for Preview and Recording
Audio Input Built-in Microphone and 3.5mm Line-In
Audio Output Built-in Speaker and 3.5mm Line-Out
Alarm Input Yes, Vin < 15V, PINs
Alarm Output Yes, 125VAC/0.5A, 30VDC/2A, Normal Open, PINs
Integrated Microphone Yes
Integrated Speaker Yes
SIP/VoIP Support Yes
Network Protocol TCP/UDP/IP, RTP/RTCP, RTSP, DHCP, DDNS, HTTP, HTTPS, SMTP, FTP, NTP
Privacy Mask Support Yes (4 zones)
Smart IR Support Yes, optimal White Balance and Exposure
Time Lapse Photography Yes
Micro SDHC Card Support Yes, up to 32GB
Snapshots Triggered upon Events, Sent via email and/or FTP
Audio Compression G.711u/A, AAC
Embedded Analytics Motion Detection (up to 16 target areas)
Pre/Post Alarm Recording Yes
Power over Ethernet (PoE) IEEE 802.3af Class 2; 10M/100M Auto-sensing; 2KV Lighting Surge Protection
Cable Connections External: RJ45 Ethernet, 3.5mm Line-In, 3.5mm Line-Out, Power Input
Internal: PINs for Alarm-In and Alarm-Out
Dimensions (D x H) 138mm(D) x 86mm (H)
Weight 0.4kg
Temperature/Humidity Operating: 0°C ~ +45°C (32°F ~ 113°F), 10-90% RH (non-condensing)
Storage: -20°C ~ +60°C (-4°F ~ 140°F)
Power Adapter Output: 12VDC/0.5A; Input: 100-240VAC, 50-60Hz
Casing Plastic case for indoor use only
Compliance FCC Part 15, Subpart B Class B; CE EN 55022 Class B, EN 61000-3-2, EN 61000-3-3
EN 55024, EN 60950-1; RCM AS/NZS CISPR 22 and CISPR24, AS/NZS 60950
