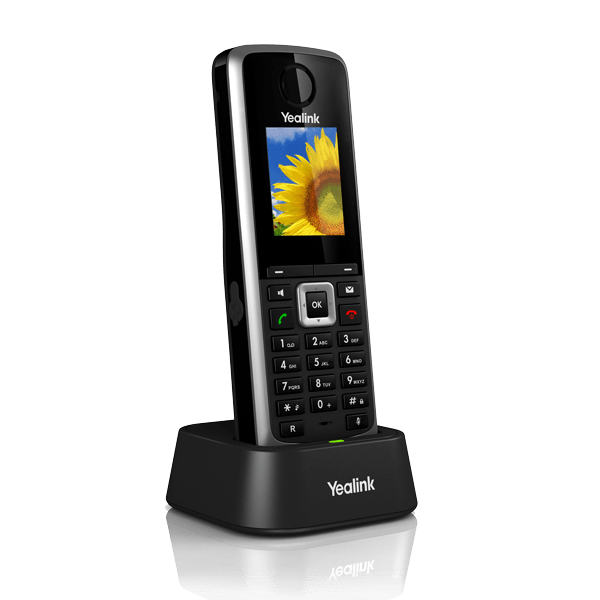

The Yealink W52H is a SIP Cordless Phone System designed for small business and SoHo users looking for a cost-effective and scalable SIP-based mobile communications system. The Yealink W52H combines the freedom of wireless communication with business features usually reserved for desk phones, such as intercom, transfer, call forward, 3-way conferencing, and the option to use a power supply or power over ethernet. This system works on Broadsoft, Asterisk, and 3CX with quick and easy configuration.
Please Note: Includes 1 Yealink DECT Handset and charger, for use with the Yealink W52P
Yealink W52H Summary
A flexible VoIP solution for small businesses
- Exceptional HD sound with wideband technology
- Up to 4 simultaneous external calls
- Up to 5 DECT cordless handsets
- Up to 5 VoIP accounts
- 1.8″ color display with intuitive user interface
- 10 hours talk time, 100 hours standby time
- Integrated PoE (Class 1)
- Desktop or wall mountable
The Yealink W52H has:
- Up to 5 DECT Cordless Handsets Per base depending on your needs.
- DECT radio coverage up to 50m indoors and 300m outdoors
- Energy-saving ECO features
DECT technology:
CAT-iq2.0 focuses on high quality Audio VoIP (wideband), as well as low bit – rate data applications, fully backward compatible to DECT GAP.
Yealink W52H Core Features
- Up to 4 simultaneous calls
- Up to 5 handsets
- Up to 5 VoIP accounts
- Handset select for receiving call
- Handset and Number select for making call
- Paging, Intercom, Auto answer
- Call hold, Call transfer
- Switching between calls
- 3-way conference
- Call waiting, Mute, DND
- Caller ID display, Redial
- Call forward (Always/Busy/No Answer)
- Speed dial, Voicemail, Silence
- Message Waiting Indication (MWI)
- Phonebook for up to 500 entries (stored in the base)
- Phonebook search / import / export
- Call history (Outgoing/Missed/Accepted)
- Direct IP call without SIP proxy
- Soft reboot or factory reset
- Keypad lock, Emergency call
- Dial Plan
- Music on hold
- Anonymous call, Anonymous call rejection
Personalization
- 9 ringer melodies
- Screen Saver
- Two kind of colour schemes
- Multiple languages
Yealink W52H Technical Specifications
Voice and Codecs Features
- Full-duplex speakerphone
- Receiver volume control: 5 steps
- Ringer volume control: 5 steps+off
- Multiple advisory tones
- Acoustic warning for low battery status
- DTMF
- Wideband codec: G.722
- Narrowband codec: G.711μ/A, G.723, G.726, G.729, iLBC
- VAD, CNG, AEC, PLC, AJB
Network Features
- SIP v1 (RFC2543), v2 (RFC3261)
- SNTP/NTP
- VLAN(802.1Q and 802.1P)
- 802.1x, LLDP, PPPoE
- STUN Client (NAT Traversal)
- UDP, TCP
- IP Assignment: Static/DHCP
Security
- Open VPN
- Transport Layer Security (TLS)
- HTTPS (server / client)
- SRTP (RFC3711)
- Digest authentication using MD5
- Secure configuration file via AES encryption
- Admin / Var / User 3-level configuration mode
Connectors
- CAT-iq2.0
- 1 x RJ45 10/100M Ethernet port
- Power over Ethernet (IEEE 802.3af)
- Headset jack (2.5 mm)
- Handset upgrade via USB
Physical Features
- Range: 50 meters indoor, 300 meters outdoor
- 10 hours talk time, 100 hours standby time
- 1.8’’128×160 pixels color display
- Desktop or wall mountable
- LCD backlit, Key backlit
- Energy-saving ECO mode/ECO Mode+
- 12 key numerical keypad, 5 navigation keys, 2 softkeys, 6 function keys, 6 shortcut keys
- 3 LEDs on Base: 1 x power, 1 x Network, 1 x Call
- Base station: DC 5V / 600mA Output
- Charger: DC 5V / 600mA Output
- Phone size: 144mm x 50mm x 24mm
- Base station size: 153mm x 108mm x 45mm
- Operating humidity: 10 ~ 95%
- Operating temp: -10 ~ +50°C
Package Features
- 1 x Handset, 1xBase, 1 x Belt clip, 2 x Ni-MH AAA: 1.2V / 800mA, 2 x Charger Cradle, 2 x Power Adapter 1 x Cable, 2 x Guide, 1 x CD-ROM
- Qty/CNT: 10pcs
- Giftbox size: 206mm*192mm*85mm
- Carton Meas: 455mm*396mm*211mm
- N.W: 7.4KG
- G.W: 8.1KG
